7089 Newly R30 Rail White 1.5m x 3 lengths
7089 Newly R30 Rail White 1.5m x 3 lengths

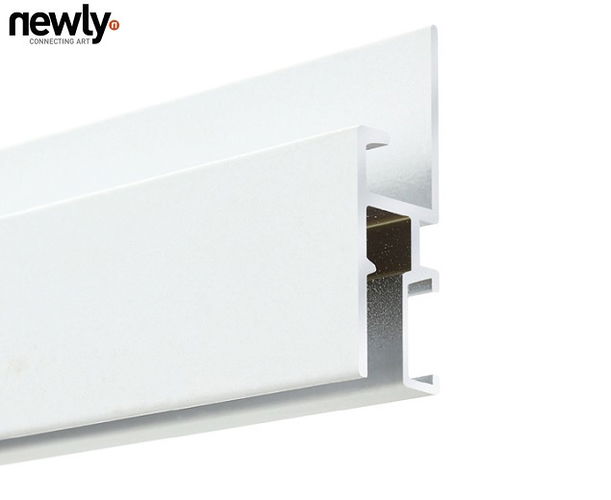

Newly R30 Hanging Rail for picture hanging system
Professional, strong and versatile

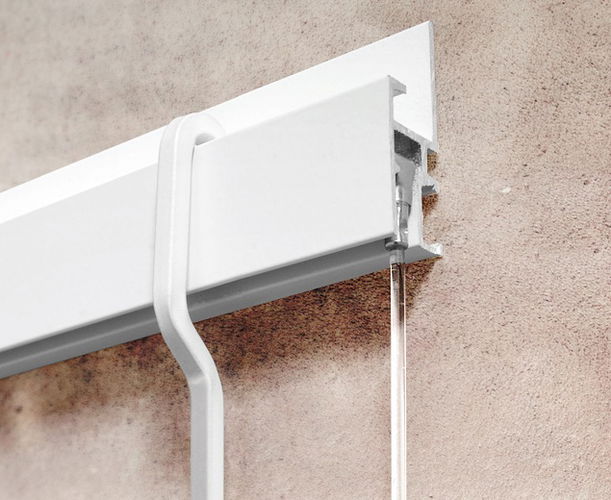

• Fits to wall, flush to ceiling if required

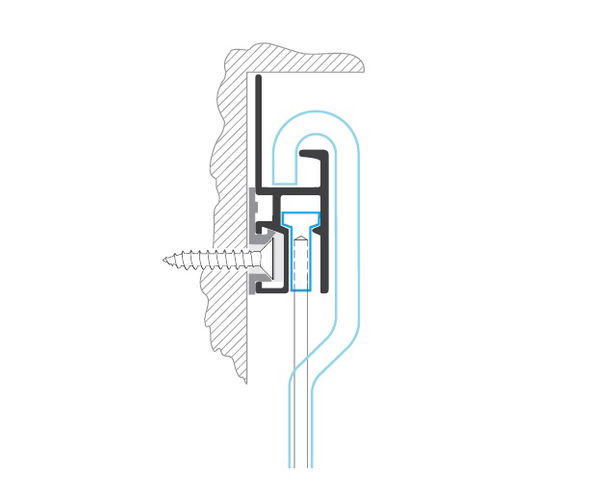

• R30 Rail profile, 34.8 x 11.5mm
• Supports up to 50 kg/m
• Fixes and joins with Newly Clip / Joiner every 300mm approx
• You can cut to length
• Can be painted
• End & corner caps available

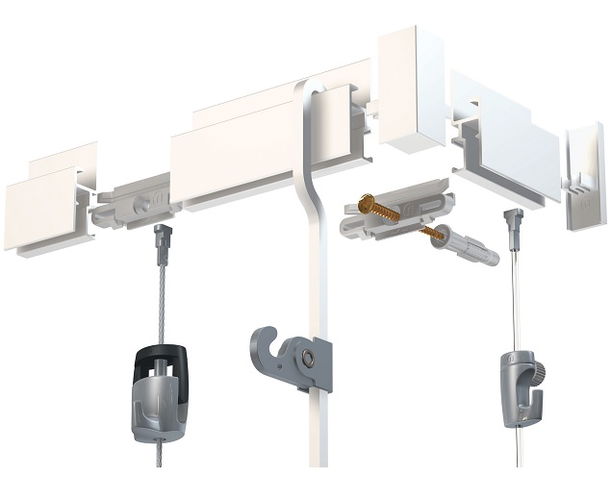

• Suspender / rod options: Perlon, Steel cable & Steel rod Twister Suspenders, G-Top Gallery Rods & Suspenders
R30 White, 1.5m x 3pcs
Safe working load, based on our best judgement (untested): 50kg
IMPORTANT: ‘Twisters’ will fit into most Clip rails. ‘Cobra’ suspenders do not fit into any of the Newly rails.
Planning the installation of an Picture Hanging System?
Ask us for a Newly Samples Pack including Newly R10 rail in Ivory and in White, plus a Twister suspender and H50 and H100 adjustable hooks, 9941.
Load Testing
We have an in-house purpose-built load testing rig so you can be more certain of the safe load carrying capacity of any frame hardware from Lion.
SWL – Red handle icon giving a tested safe load figure which is derived from actual test results on our rig. Typically between 25% and 33% of the load at failure.
ESWL – White handle icon shows an estimated safe load figure based on our experience and best judgement.
Questions
Q: Please clarify.....does this pack contain 3 pieces which, when connected, make up 1.5m or is it 3x 1.5m lengths totalling 4.5m?
A: This pack is 3 x 1.5m lengths which total 4.5m.
