7500C Z Bar Hanger Strips 450mm for Wood frames pack 100 pairs

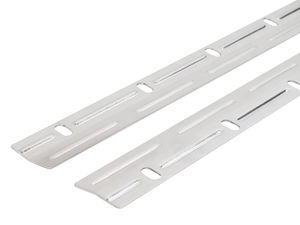

Z Bar Hanger Strips are frame hangers in matching pairs

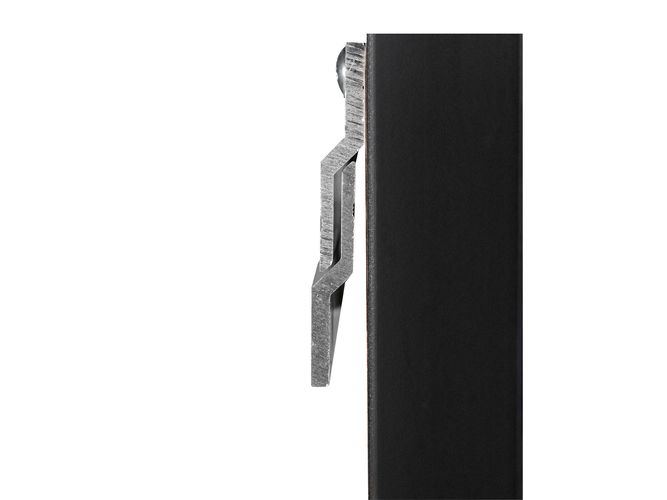

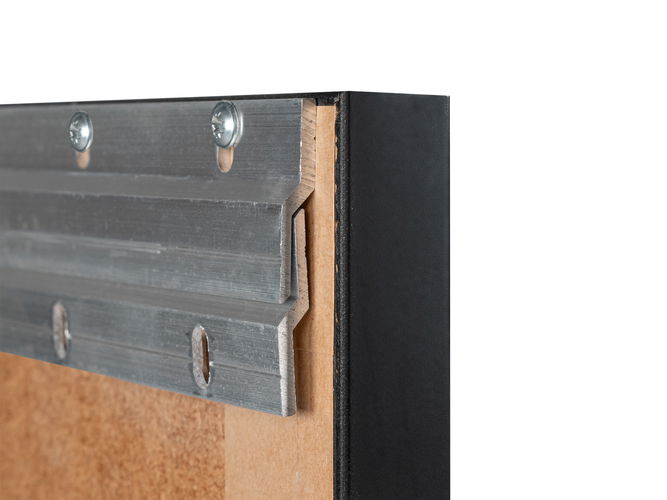

One strip is screwed to the wall pointing up and the other strip is screwed to the top rail of the wood or polymer frame, pointing down. The frame hooks on. It can be secured with a T Screw at the bottom.

This pack has 100 pairs, 200 pieces, of Z Bar Hanger strips 450mm for wood frames. Using one pair on smaller frames up to about 900mm wide it will hang 100. Or when using two pairs on frames up to around 1200mm wide it will hang 50 frames. Screws not included.

Use a pair of Z Bars centred to hang smaller wood frames up to around 900mm wide which often allows sideways adjustment to help alignment of groups. For larger frames up to 1200mm use two pairs side-by-side positioned towards the top corners of the frame. Can be cut. Installer judgement required.

Dimensions:

450mm long

32mm wide

4.7mm x 9.5mm oval holes for easy levelling
