10112
J Rail Max Aluminium SILVER 2m Picture Hanging System Rail

£12.43 Ex Vat

6 available More expected Thursday 17 Dec 20

See more products in the following ranges:

Description

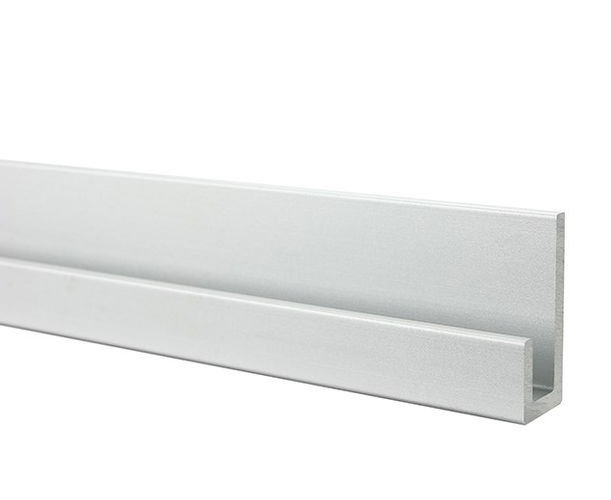

10112 J Rail Max Aluminium SILVER 2m Picture Hanging System Rail

Ideal for professional displays and offers a range of security options

• Supports up to 50kg/m

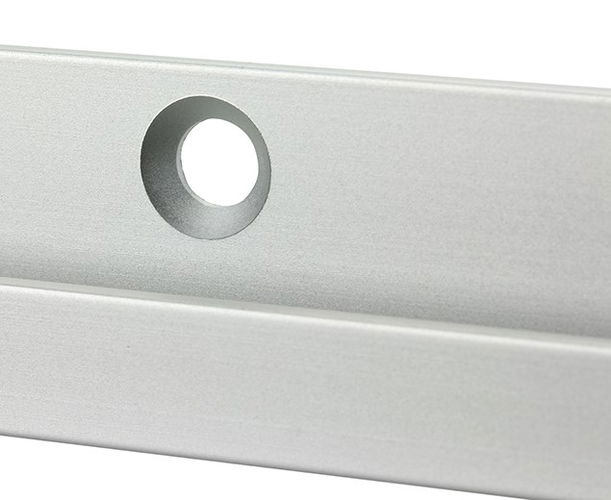

• Countersunk holes every 250mm

• Fixes with screws, supplied by you

• You can cut to length

• Profile 9mm wide, 20mm tall

• Rod options:

G-Top Square Rods - Part no. 7106 & 5031
U-Top Square Rods - Part no. 2015 & 2016

Safe working load, based on our best judgement (untested): 50kg

J Rail Max Silver, 1 length of 2m

Load Testing

We have an in-house purpose-built load testing rig so you can be more certain of the safe load carrying capacity of any frame hardware from Lion.

SWL – Red handle icon giving a tested safe load figure which is derived from actual test results on our rig. Typically between 25% and 33% of the load at failure.

ESWL – White handle icon shows an estimated safe load figure based on our experience and best judgement.


Questions

Please feel free to ask any questions about this product.

0 Questions

Ask a question

More Info

Download this document

Stas J Rail Max Manual

1.38 MB

Download

Download this document

Stas J Rail Max Product Info

941.42 KB

Download

Specification

TypeHanging rails
ColourSilver
MaterialMetal
Quantity1
Length2m
Height20mm
ForHanging systems
Max Load50kg
Width9mm
BrandStas
