10306
T Screw Companion Tool

£14.65 Ex Vat

In Stock (192 available)

See more products in the following ranges:

Description

10306 T Screw Companion Tool

Unique new tool which makes it easy to mark the position for a T Screw when installing wood frames

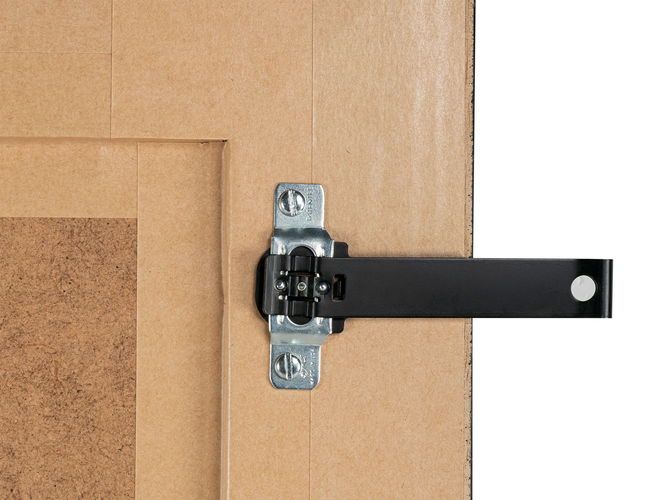

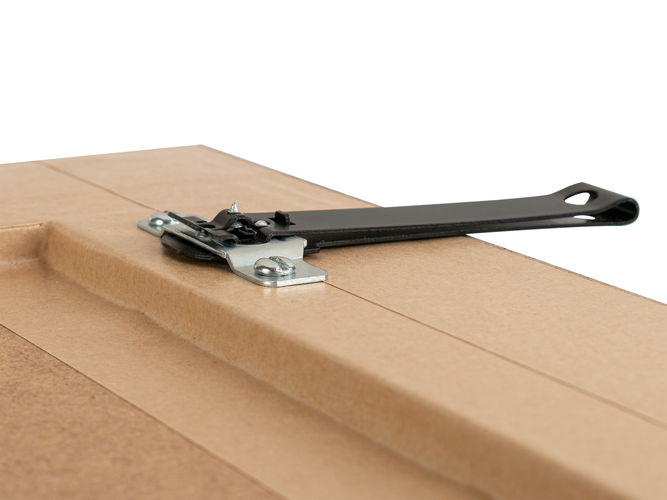

The tool simply clips into any Slotted Plate on the frame. When pressed against the wall, the hardened point leaves a small dimple mark in the surface.

With a normal installation, it is simple to measure the slotted plates at the top of the frame and mark the T Screw positions on the wall. Tip - place Post-its on the wall, mark and drill though them. Then hang the frame and check for level.

To mark the Top Hook positions and T Screw position at the bottom, simply push the T Screw Companion tool into the Slotted Plate and press the frame to make the dimple, then pull it out. Lift off the frame, drill and insert the bottom T Screw, then finish the installation.

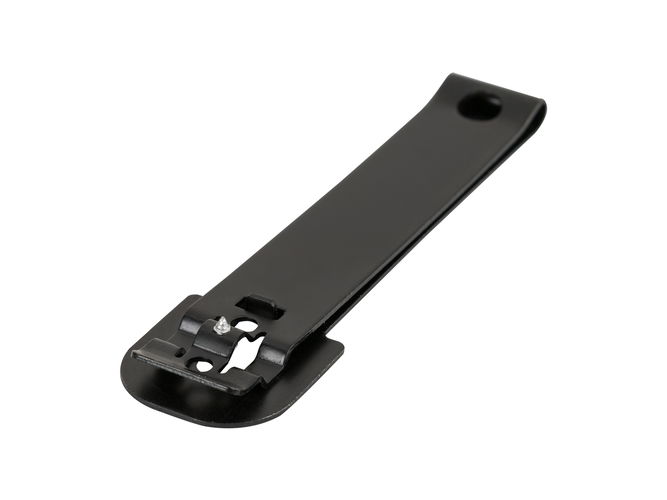

T Screw Companion Tool is 88mm x 22mm. Made of spring steel 0.78mm with black finish. 6mm hole for lanyard. Designed by AccuMount Tools in USA and subject to a Patent Pending.

10306  T Screw Companion Tool for wood frames

See also:

2008  Slotted Plates zinc plated pack 200

2006  T Screws zinc plated pack 200

7579  2T Screw kit for 24mm drywall

2835  FrameSecure markers and fixings for Aluminium frames

More info:

Click here to view PUB113, a 4 page info leaflet covering our T Screws range

Product information updated March 2021



Questions

Please feel free to ask any questions about this product.

0 Questions

Ask a question

More Info

Download this document

PUB113 T Screw kits

6.70 MB

Download

Specification

TypeT screw tools
Quantity1
BrandOther
Length88mm
Depth0.78mm
