3 T Screws Kits for Wood Frames 100 bags

3 T Screws Kits for Wood Frames 100 bags
£155.14 Ex Vat
In Stock (15 available)

Quantity: 100

Quantity

713C 3 T Screws Kits for Wood Frames 100 bags

A popular way to hang Wood and polymer frames and secure them with T Screws.

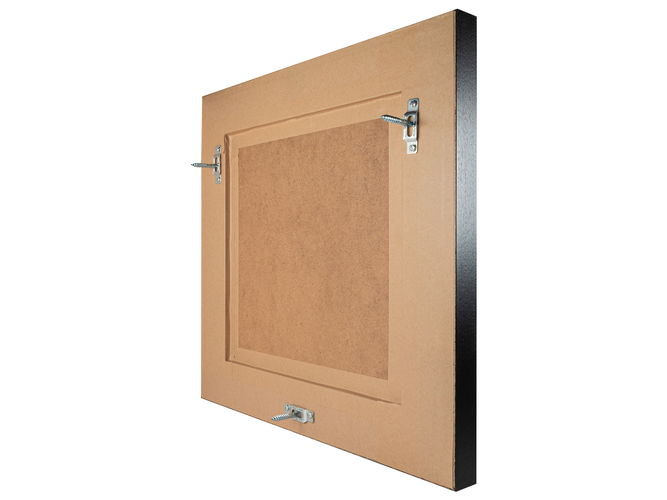

Two Slotted Plates are screwed one each to either side or spaced across the top of the frame. The third plate is screwed centrally to the bottom bar. The frame fits over three T Screws in matching positions on the wall.

Measure between the upper slotted plates and plan where to mark the wall for the holes for the matching T Screws. Post-its can help when marking the wall. Hang the frame temporarily on those two T Screws.

Installers now need to locate and mark the position for the bottom T Screw. A Post-it placed in the approximate position can take pencil marking. Another option is the T Screw Companion which clips into the Slotted Plate and when the frame is pressed, leaves a dimple on the wall.

Once marked, remove the frame, drill and install the third T Screw. Finally, position the frame on all three T Screws and lock with the spanner.

The 3 T Screw system is completely hidden yet makes the frame safe and secure on the wall. No ugly picture plates sticking out from either side.

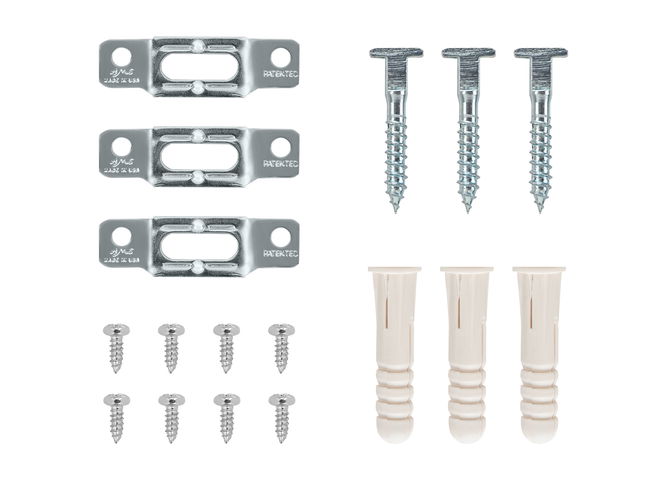

Bag contains:

3 Slotted Plates 2008 + 6 screws
3 T Screws 2006 + 3 fat wall plugs 2212

713C  3 T Screws kits for Wood & polymer frames  100 bags

See also:

713      3 T Screws kit for Wood & polymer frames 1 bag

713B   3 T Screws kits for Wood & polymer frames 10 bags

10306  T Screw Companion to help mark T Screw positions

889      T Screw Spanner
