7868L SUB08 Aluminium Sub Frame Length per metre
7868L SUB08 Aluminium Sub-Frame Length

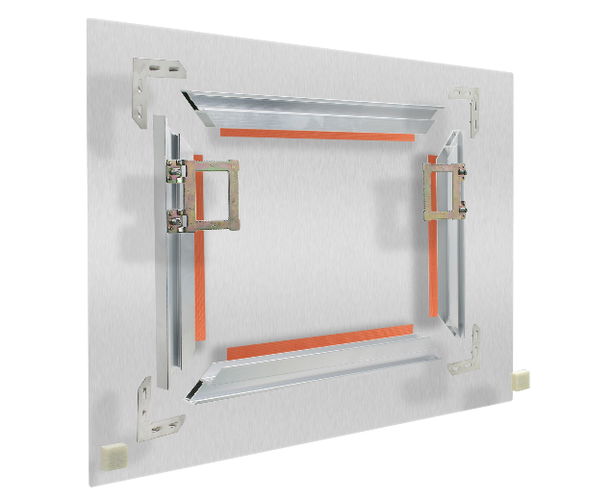

What is a Sub-Frame?
- A frame cut to size and fitted to the back of the panel with VHB Tape/Heavy-Duty (HD) bonding tape

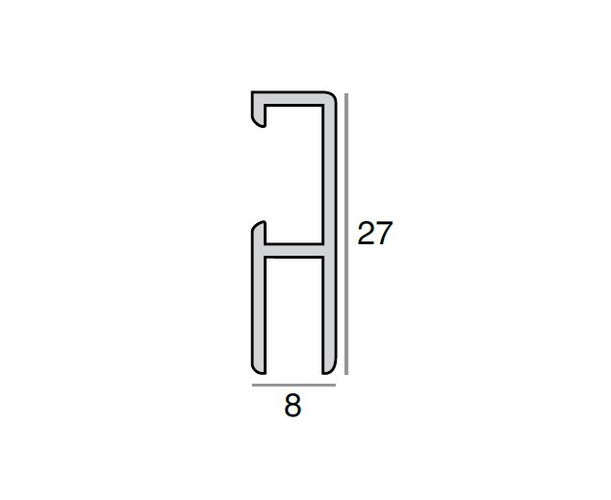

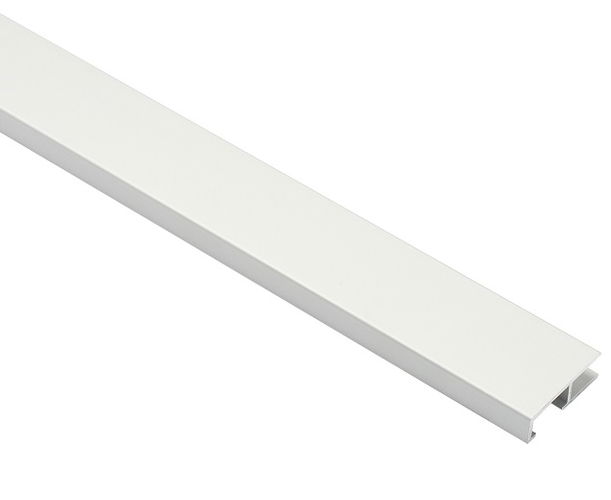

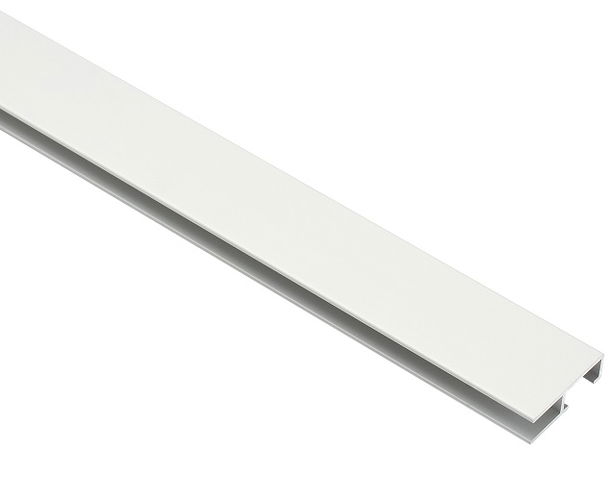

- It is an extruded aluminium profile, with a matt silver anodised finish
- Mitred corners are joined with Steel Push In Corners. Alternatively, use metal plates from the Hardware Kit, fixed in place with a screwdriver
- Hangers are fitted to the frame
What does a Sub-Frame do?
- Provides a means of fitting hangers to allow the panel to hang on normal picture hooks
- Adds rigidity to the panel
- Gives the panel a feeling of weight and enhances the quality
- Spaces the panel away from the wall so that it appears to float
How big should your sub frame be?
For square cut profiles using Moulded Push-In Corners (for SUB15 only) - measure the printed panel and allow 25-75mm border (depending on panel size). Take the external measurements of the sub frame e.g. 300mm x 500mm. Subtract 27mm to each end to allow for the width of the push in corners, making the framed example 446mm x 246mm.
For mitre cut profiles using Steel Push-In Corners or Double-Plate Hardware - do the same as you would for square cut profiles but there's no need to subtract to all for the moulding push in corners.
Adhere the sub frame to the printed panel with HD Bonding Tape 6919. Remember, adhesive products work best if the surfaces to be bonded are totally clean and grease free. Use solvent surface wipes 9837 (sachets) or 9838 (tub).
Priced per metre, supplied in 3m lengths. Please order in metres, we will round up to the nearest full length.
Download the Sub Frame Measuring Guide.
Lion supply sub-frame profiles in 3 metre lengths, as precision mitred pairs in standard and in bespoke sizes. Click here to order bespoke sizes through our Chop Service.
Choose between two profiles, SUB15 is 15mm deep and SUB25 is 25mm deep. The depth of the sub-frame dictates how far the panel hangs from the wall.
Click here to browse standard sizes.
More info:
How to: Mount Prints onto Clear Acrylic
How to: Assemble an Aluminium Frame
Fitting a Sub-Frame to a graphic panel...
Chop Service
£4.22 ex VAT per metre
Optional: select a hardware kit
This moulding has hardware kits available. Please select from the following:
Set a frame size
Number of frames
Fitting Tolerance
Summary
Frame glass size 150mm x 150mm
Total frames required 1
Fitting tolerance 2mm fitting tolerance added
Price £2.82 ex VAT
Add Chop to BasketChop Service
Ordering moulding on our Chop Service means that you give us the measurements of your frames and we cut the mitred pieces for you. All you have to do is join them on your underpinner.
- With nearly 50 years' experience of Chop, you can trust us to carefully select and check your moulding before cutting it on our state-of-the-art, super accurate, digital double mitre saws. This leaves you free to focus on your business and get more done.
- Choose from the entire LION range without holding anything in stock. Chop Service orders placed before 12:00 are despatched same day.
- With Chop Service you only pay for what you need, there’s no guesswork, no wastage to allow for, and it saves space in your workshop. We recycle any offcuts we can’t use so nothing goes to landfill.
- Read our Chop Service FAQs. Learn how to calculate the glass size.
